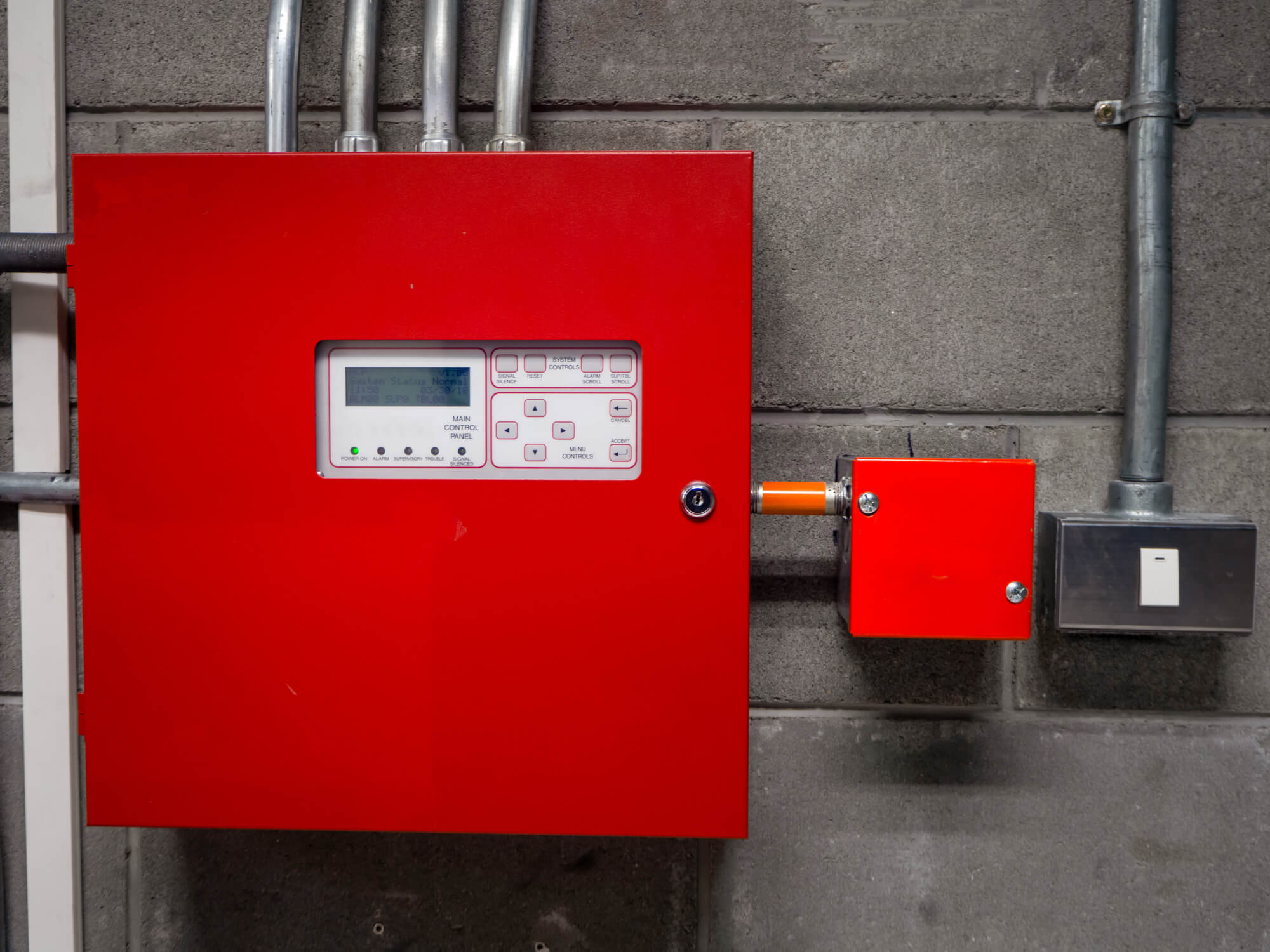

Fire Alarm Control Panel Installation Tips (From The Experts)

Key Takeaways

• Before installation begins, secure permits and AHJ approval — NFPA 72 requires that the installed system match approved design documents, and any field deviations must be submitted for re-review.
• Panel placement has hard code requirements: first-floor access is strongly preferred, 36 inches of clear working space is mandatory, displays must be mounted between 15 and 72 inches above finished floor, and the main electrical room is not a permitted location.
• The three most common wiring mistakes that surface at inspection are incorrect wire gauge, inadequate strain relief at terminals, and mixed circuit types in the same conduit—all of which are avoidable with proper pre-installation planning.
• All rechargeable batteries used as secondary power sources must be listed under UL 1989 or UL 2054. This applies to new installations and to battery replacements on existing systems.
• Battery testing is a code requirement, not just a best practice. NFPA 72 requires annual load testing and replacement based on performance, not a fixed calendar schedule.

A fire alarm control panel installation that fails inspection rarely does so because of a major error.

It fails because of the small things: a panel mounted in the wrong room, a battery that doesn't meet current listing requirements, or a wiring class that wasn't documented correctly.

For maintenance professionals managing commercial fire alarm systems, understanding what the code actually demands (not just what common practice looks like) is what separates a clean commissioning from a costly re-inspection.

What NFPA 72 Requires Before You Mount Anything

Before any hardware goes on the wall,  NFPA code 72 establishes a clear set of prerequisites that govern how a compliant fire alarm control panel (FACP) installation begins.

Permits

Nearly every jurisdiction requires a fire alarm permit before installation starts, and most require submitted plans that have been reviewed and approved by the Authority Having Jurisdiction (AHJ). The AHJ, whether that's a local fire marshal, building department, or state fire authority, has final say on code interpretation in their jurisdiction.

Keep in mind that NFPA 72 also requires that the installed system match the approved design documents. Field modifications made during installation that deviate from the approved plans must be submitted for re-review.

Proper Documentation

Documentation requirements are equally important and frequently underestimated.

NFPA 72 mandates a Record of Completion, which is a formal document that captures the system's design basis, installed equipment, wiring method, and test results. This is a required deliverable at final inspection and a critical reference document for every technician who services the system after installation.

Correct Installer Qualifications

Many jurisdictions require NICET (National Institute for Certification in Engineering Technologies) certification at specific levels depending on system complexity.

Confirming the certification requirements in your jurisdiction before work begins protects both the installation team and the building owner.

How To Choose the Right Location for Your Fire Alarm Control Panel

Panel placement is one of the most consequential decisions in a fire alarm control panel installation, and a common citation of AHJ corrections.

Placement Requirements

The panel must be readily accessible to both emergency responders and maintenance personnel at all times.

In practice, this means first-floor placement is strongly preferred and often required. Locating the FACP in a basement or upper floor creates access delays that most AHJs will flag during plan review.

The FACP should not be installed in the main electrical room where the utility service enters the structure. This restriction exists to prevent interference with utility provider access and to reduce the risk of the panel being compromised by an electrical event in that room.

Utility closets, dedicated fire alarm rooms, lobby areas, or branch electrical rooms are all commonly accepted locations, but always confirm with your AHJ before finalizing placement.

It’s also important to evaluate the environment. Control equipment should be installed in an environment within the manufacturer's specified temperature and humidity range. Panels placed near loading docks, exterior walls, or mechanical spaces with significant temperature swings can experience premature component failure and false alarm events if environmental controls aren't adequate.

Clearance Requirements

NFPA 72 and the standard electrical code requirements mandate a minimum of 36 inches of clear working space in front of the panel. This requirement affects where adjacent equipment, shelving, or storage can be placed both at installation and throughout the system's life.

Mounting Height Requirements

Mounting height for the control unit's displays, indicators, and switches must fall between 15 inches and 72 inches above the finished floor. This range ensures the panel remains operable and readable without specialized equipment, which matters both during normal operations and in emergency response scenarios.

Top Wiring Mistakes To Watch In Fire Alarm Control Panel Installation

Wiring is where many fire alarm control panel installations accumulate the problems that surface during testing and inspection.

And the best place to start is with how NFPA 72 classifies circuit pathways.

Wrong Wiring Gauge

Fire alarm wiring must meet manufacturer specifications for the connected devices, and voltage drop calculations must demonstrate that every device on the circuit receives adequate voltage under alarm load conditions.

Inadequate Strain Relief

Conductors that aren't properly secured near terminals are vulnerable to mechanical stress that causes intermittent faults — the hardest category of problem to diagnose after commissioning.

Mixed Circuit Types

Routing initiating device circuits and notification appliance circuits together without meeting separation requirements creates supervision and fault-isolation problems.

Ground faults deserve particular attention. A single ground fault on a two-wire circuit will typically generate a trouble condition at the panel, but an undetected second ground fault on the same circuit can create a short that disables devices or triggers unwanted alarms.

Grounding the system correctly, verifying continuity, and isolation at commissioning prevents a category of problems that is both common and difficult to troubleshoot after the fact.

Why You Need To Consider Your Secondary Power Supply Carefully During FACP Installation

Power supply is one of the most technically detailed areas of a fire alarm control panel installation.

NFPA 72 Section 10.6.7.2.1 establishes the minimum secondary power requirement:

The system must be capable of operating under quiescent (standby) load for a minimum of 24 hours, then sustain full alarm operation for at least 5 minutes at the end of that period.

For systems that include in-building emergency voice/alarm communications or mass notification capability, that alarm duration extends to 15 minutes. These are the minimums. Nothing in NFPA 72 prevents specifying higher capacity where building size or occupancy risk warrants it.

If you’re using batteries as your secondary power supply, it’s important to remember that all rechargeable batteries used as secondary power sources in fire alarm control units, devices, and accessories must be listed or component-recognized by a nationally recognized testing laboratory. UL 1989 (Standby Batteries) and UL 2054 (Household and Commercial Batteries) are the primary listing standards.

Keep in mind that batteries must be load-tested at least annually, and replaced when recharged voltage or current falls below manufacturer specifications, rather than simply on a fixed calendar schedule.

Work With Certified Fire Alarm Professionals Who Get It Right the First Time

A fire alarm control panel installation done correctly protects lives, passes inspection, and holds up over years of service and code evolution.

Partnering with a certified fire alarm installation team means those details are handled systematically, not left to chance.

Contact the fire protection experts at Impact Fire to discuss your next FACP installation or system assessment.
